Spindle bearings, super precision cylindrical roller bearings, axial angular contact ball bearings
Radial thrust precision bearing
Products (70, 72, 79 series) use polymer or polyamide materials. The precision of the parts is P2-P4 level, and the contact angle is 15/25/30 degrees. The diameter of bearings ranges from a minimum of 5 millimeters (70-72 series) to a maximum of 280 millimeters (79 series).

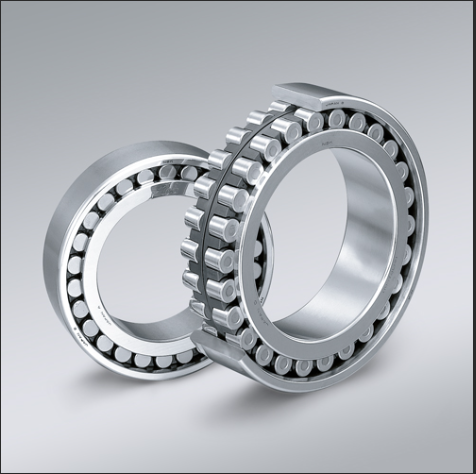

NSK super precision cylindrical roller bearings are designed specifically to handle large radial loads in high-speed spindle applications that require high running accuracy.
Standard bearings that conform to ISO standards and specialized series for machine tools.
Double-row cylindrical roller bearings with high rigidity and single-row options for high speeds.
A range of NSKROBUST™ high-performance bearings for both high rigidity and ultra-high speeds.)

Spindle bearings, super precision cylindrical roller bearings, axial angular contact ball bearings
Radial thrust precision bearing
Products (70, 72, 79 series) use polymer or polyamide materials. The precision of the parts is P2-P4 level, and the contact angle is 15/25/30 degrees. The diameter of bearings ranges from a minimum of 5 millimeters (70-72 series) to a maximum of 280 millimeters (79 series).

(NSK provides angular contact ball bearings specially designed for machine tool swivel heads. These bearings match the high-precision processing needed in multi-spindle configurations. In particular, our ROBUSTSLIM high-accuracy low-profile angular contact ball bearings offer high rigidity with low torque.

Features
High running accuracy and low torque rotation made posible with ball bearings
High moment stiffness on par with crossed roller bearings
Specialized design more compact than standard bearings.)

NSK super precision cylindrical roller bearings are designed specifically to handle large radial loads in high-speed spindle applications that require high running accuracy.
Standard bearings that conform to ISO standards and specialized series for machine tools.
Double-row cylindrical roller bearings with high rigidity and single-row options for high speeds.
A range of NSKROBUST™ high-performance bearings for both high rigidity and ultra-high speeds.)

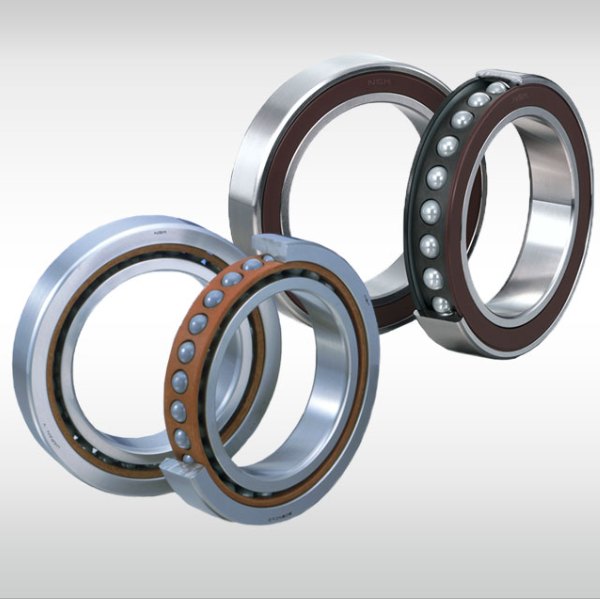

NSK offers a wide lineup of super precision angular contact ball bearings to provide optimal specifications for your application.
Our bearings provide the perfect solution for equipment requiring high running accuracy or high rotational speed, such as the main spindles of machine tools.
Standard bearings that conform to ISO standards and specialized series for machine tools
Sealed bearings with prepacked grease
A range of NSKROBUST™ high-performance bearings for both high rigidity and ultra-high speeds)

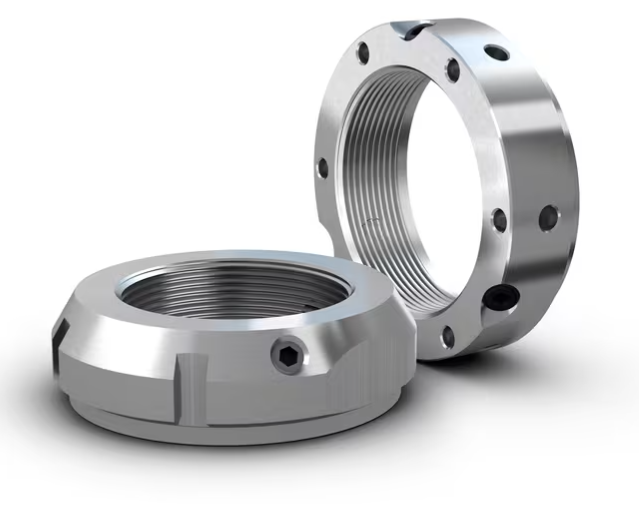

Industrial lock nuts with lock washers are not considered to be suitable for super-precision bearing applications because of the relatively wide manufacturing tolerances of the thread and abutment surfaces. As a result, SKF has developed a full line of precision lock nuts that are manufactured within very tight tolerances. These simple to mount devices, which locate bearings and other components accurately and efficiently on a shaft, meet the requirements of machine tool applications, both technically and economically.

All SKF precision lock nuts use friction between the mating thread flanks of the spindle shaft and lock nut to hold them in place. To apply this friction, SKF manufactures precision lock nuts in the following design:

*precision lock nuts with locking pins

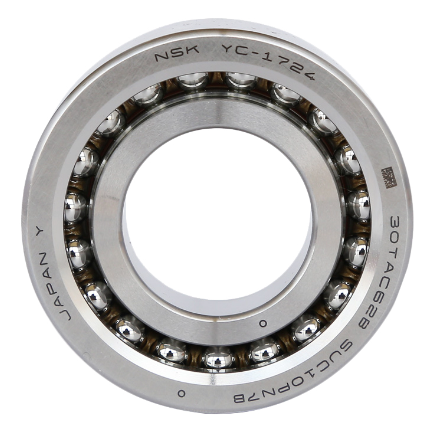

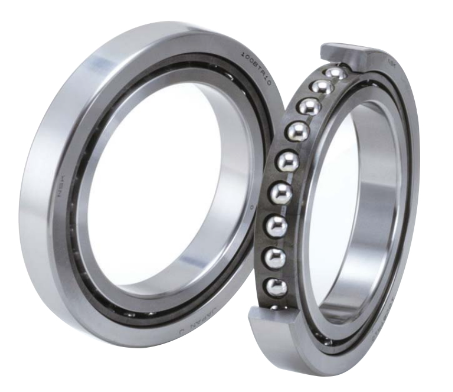

Machine tools require screw drives that can position a work piece or machine component quickly, efficiently, and precisely. To meet these requirements, screw drives can be supported at both ends by SKF super-precision angular contact thrust ball bearings. The bearings provide a high degree of axial stiffness, high axial load carrying capacity, accommodate high speeds and rapid accelerations, and offer very high running accuracy.

Angular contact thrust ball bearings for screw drives are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft.
